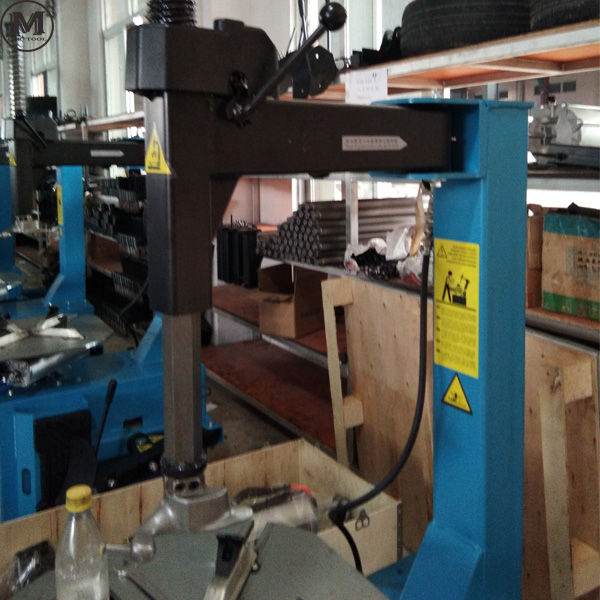

Swing arm tire changer
Applicable to small and medium car, tubeless tires are available.

Standard configuration:

Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more smooth and corrosion resistance, longer life. Drawer control assembly, simple structure , fast and easy maintenance.

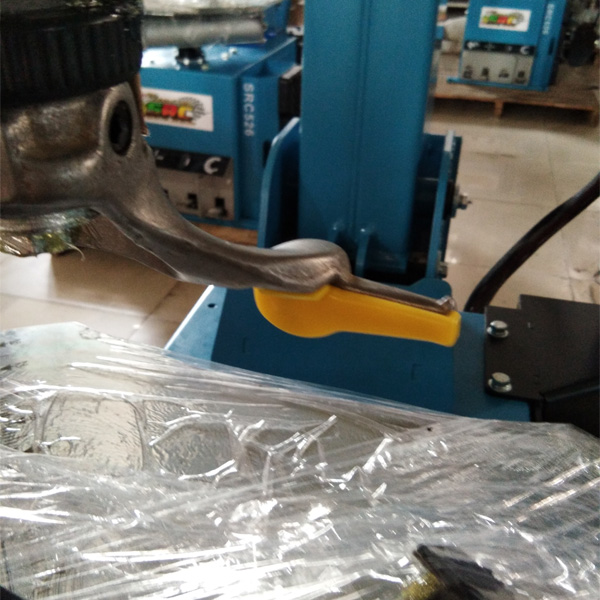

180 mm diameter steel plated carved two-way intake tire shoulder separation cylinder, wear-resisting, Rust and corrosion resistant, long service life.

Using 3mm thickness steel plate combined cabinet, firm structure, Weld concealment, beautiful appearance.



Technology parameter:

Max. Wheel diameter	1020 mm(40”)
Max. Wheel width	356 mm(14”)
Inside chuck size	12”-26”
Outside chuck size	10”-24”
Power supply	380/3PH/50-60Hz
Working pressure	8-12 bar
Bead breaker power per cylinder	2800 kg
Self-centering rotation speed	6-12rpm
Net weight	230 kg
