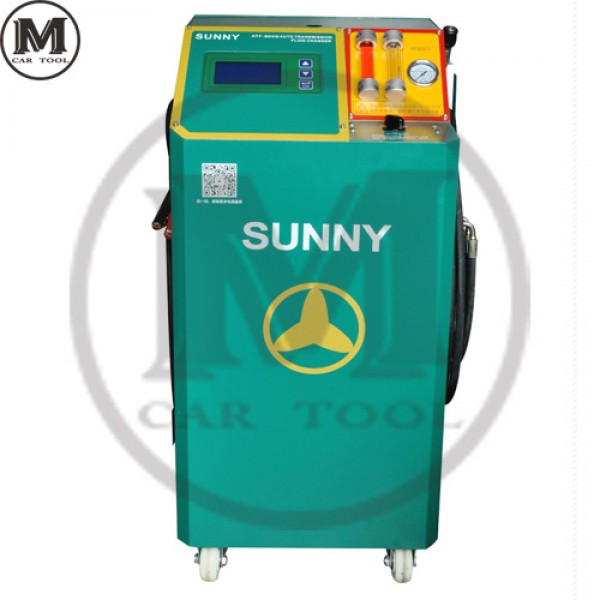

ATF-805D Automatic ATF Exchange & Recycling Machine

Function :

1.    Auto transmission fluid flow direction automatical recognization

2.    Automatically and intelligently control equivalent exchange with high accuracy

3.    Recycle cleaning function

4.    Auto transmission fluid filling settings on demand function

5.    Auto transmission fluid recycling settings on demand function

6.    Oil pressure of auto transmission radiator visual display

7.    One button to change oil intelligently.

8.    Fast oil change for low pressure vehicles.

9.    Protection function for high pressure vehicles.

10.  Automatically detect of electronic scales when booting device

11.  Intelligently count of total oil consumption;

12.  Self-setting function of total oil consumption locked;

13.  One button to calibrate electronic scales function;

14.  LCD display, easy to operate

15.  Varies exclusive adapters suitable for European, American and Asian vehicles.

16.  Effectively solve the problem of oil change incompletely;

17.  Improve the performance of auto transmission

18.  Extend the lifetime of auto transmission.

​

Feature of Software:



1. Protection function for high pressure vehicles.

When recycling volume is bigger than the filling volume, the recycling function is closed automatically

2.Protection function low pressure vehicles.

When recycling volume is smaller than the filling volume, the filling function is closed automatically.

3. Protection function for volume limitation.

Automatic error reporting when the volume of new/old oil tank volume bigger than 20L.

4. 59 seconds protection:

Automatic error reporting when any of procedure of filling, recycling or equivalent exchange last over 59s.

Working Environment:

Environment temperature: -10~+50℃

Relative Humidity: <65%

Hardware Parameter:

Voltage: DC12V

Max Power: 150V

Pressure Gauge: 0~150psi

Oil Outlet Pipe: 2.5m

Oil Inlet Pipe: 2.5m

Accuracy of Filter: 5um

Oil Tank: 20LX2

Equivalent Oil Exchange Error: ±100g

Noise: <70db

Net Weight: 50KG

Gross Weight: 70KG

Detailed Introduction of Device:
