Preparation station

Configuration:

External Size:7500×3550×3180mm(L×W×H)

Internal Size: 6300×3500×2700mm(L×W×H)

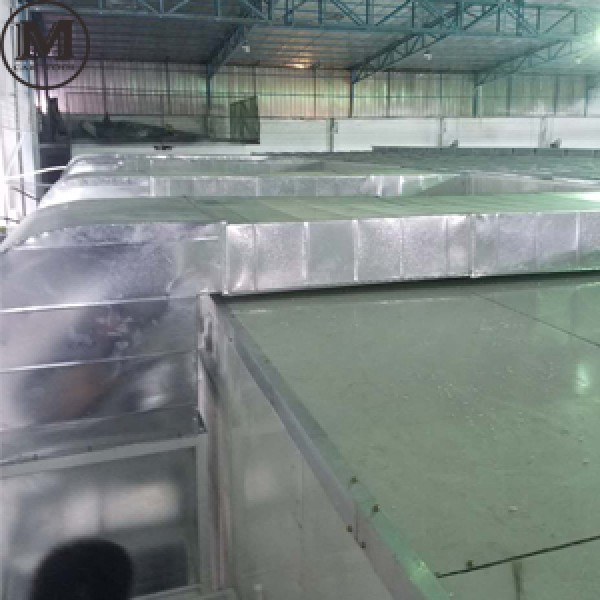

Plenum Dimension: 6300×3450×400mm(L×W×H)

Basement B1 : Without Basement, B2: pit type, B3: with steel basement

Room Body: Back side with 50mm EPS wall panels, the other 3 sides with PVC curtains

Lighting System: Ceiling lights 8units × 3pcs=24pcs 16W, 1200Lux, LED light

Intake and Exhaust System:

4KW centrifugal fan as intake fan, air capacity:12000 m3/h.

4KW centrifugal fan as intake fan, air capacity:12000 m3/h.

Filtering System: Pre-filter, high efficiency filter, exhaust fiberglass filter

Control System: Fan operation switch, lighting switch, emergency stop

Total Power: 8 KW

General Setting: Exhaust air from rear side or basement, powder coating treatment
