Key Master(OBDSTAR X300 PRO3) is a  completely new hand-held product launched by OBDSTAR. It's design is fully based on industrial standard. It's deployed with bilateral keyboards,it's easy to operate.Meanwhile, it's appearance is processed by special material,and reaches to the shockproof  level. With Key Master, Without worries about Matching!

Key Master Auto Key Programmer is a kind of handheld device for programming keys in immobilizer units on vehicles. This scan tool has a simple and robust design, to make your vehicle service experience much easier!

●Multi-language environment can be applied in different countries and regions.

●The main unit system adopts ARM high speed chip to keep it running fast, stable and anti-jamming.

●Upgrade via SD card at any moment.

●Modern design and high-definition screen realize the integration of automotive industry and electronic information technologies and make auto diagnosis and key programming easier, practical and economical. Integrity structure design makes it crack resistance, shock resistance and durable.

●Industrial design ensures the tool work stably under tough environment, such as high and low temperatures.



I. Vehicle Coverage

BAIC、BENZ、BESTURN、BMW、BRILLIANE、BYD、CHANGAN、CHANGHE、CHERY、CHRYSLER(CHRYSLER/DODGE/JEEP)、DFFENGSHEN、DFPV、FAW、FIAT、FORD/LINCOLN、GEELY/HUAPU/SQYL、GM(BUICK/CADILLAC/CHEVROLET/GMC/HUMMER)、GREATWALL、HAFEI、HAWTAI、HIMIKO、HNMAZDA、HONDA/ACURA、HONGQI、HYUNDAI、ISUZU、JAC、JAGUAR、KIA、LANDROVER、LIEBAO、LIFAN、LUFENG、LUXGEN、MASERATI、MAZDA、MITSUBISHI、NISSAN/INFINITI、OPEL、PEUGEOT/CITROEN、PORSCHE、PROTON、QQROS、RENAULT、ROEWE/MG、SGMW、SMART、SSANGYONG、SUBARU、SUZUKI、TJFAW、TOYOTA/LEXUS、VW/AUDI/SKODA/SEAT、YOUNGLOTUS、ZZMAZDA、ZZNISSAN、ZOTYE;

Note: There would be some difference to software in different countries. If need more specific information, pls feel free to contact with us or our distributors in your aera.

And the more cars’ software will be released.



II.Software update

Via official website : www.obdstar.com,Free update for 1 year



III.Language

English,simplified Chinese, traditional Chinese



IV.Features

1. New keys programming;

2. Reads keys from immobilizer’s memory;

3. New immobilizer programming;

4. New ECU programming;

5. New mechanical key number programming;

6. Vehicle Identification Number programming;

7. Reset ECU&Reset immobilizer;

8. Easy to operate by the guided menu programming;

9. New remote  programming;

10. PINCODE reader;

11. Odometer ajustment(Via obd);

12. EEPROM/PIC Chip read and Immobiliser initialization ;

13. Electric Park Brake(EPB);

14. Oil/Service reset;

15. Battery matching;

16. With full and strong database for the most important vehicle makes;



V.Key Master English Version Configuration

1.standard configuration:

Immobiliser + Odometer adjustment +EEPROM/PIC+OBDII；

2.Full package configuration:

Immobiliser + Odometer adjustment +EEPROM/PIC+OBDII+EPB+Oil/Service reset+Battery matching；

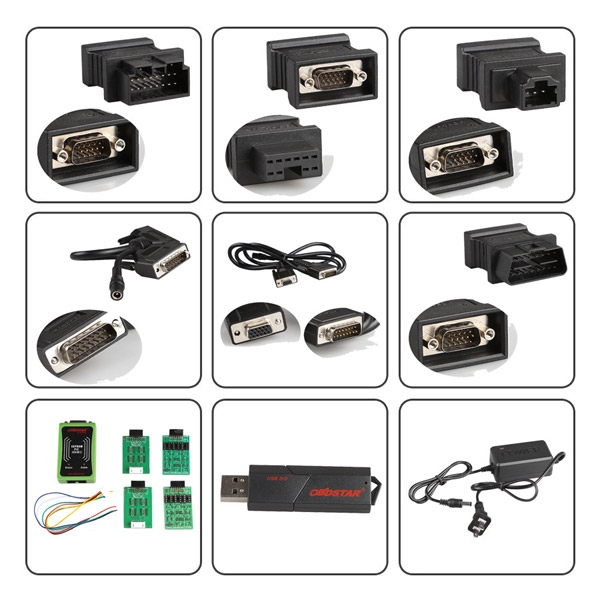

VI.Key Master English Version Packing List

1.  Key Master main unit;

2. OBDII-16 connector;

3. HONDA-3 connector;

4. HYUNDAI/KIA-10 connector;

5. KIA-20 connector;

6. Main Cable;

7. SD Card;

8. SD Card Reader;

9. Key Master user’s manual;
