WT-6F Six Cylinders Fuel Injector cleaning and testing machine

WT-6F Six Cylinders Fuel Injector cleaning and testing machine

Product Code: WT-6F
Availability:
In Stock
Description

6 Cylinders fuel injector test equipment

Machine Size:480(W)mm*500(D)mm*460(H)mm

Weight:42kg

Voltage:AC 220V±10%    50Hz  500W

Working Environment:Temp -10°C ~ 40°C

Oil Tank:4L

Testing Tube Volume:120CC

Ultrasonic Frequency:25kHz

Ultrasonic Power:100W

 Maximum Testing Number of Cylinder:6

Rotation Speed:09950 r/min, step50 r/min.

 Pulse Duration:120ms, step 0.1ms.

Injection Number of Times:010000 times, step 50.

Injection Time:0600s,step 1s, adjustable

Oil Pressure:0539kPa(5.5kG/cm2)±9.8kPa(0.1kg/cm2),adjustable

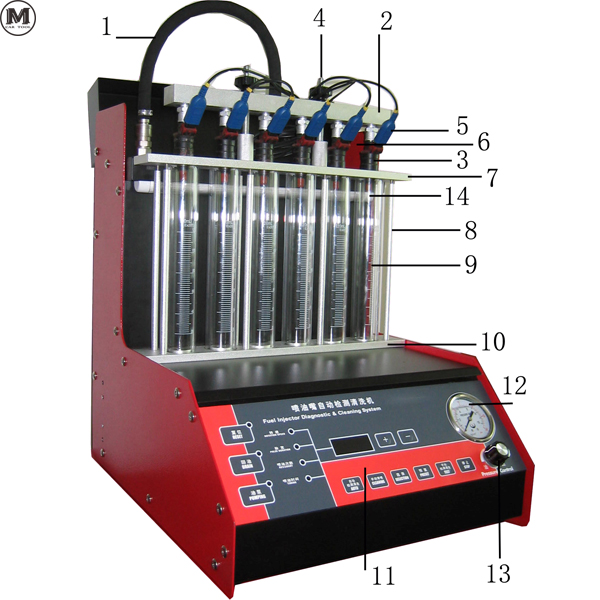

1、Feed Pipe                     2、oil storage

3、injector                     4、Fixed screw of testing shelf

5、Pulse cable                    6、Joint of recovery cleaning detergent

7、Upper plate                    8、Test tube support

9、Glass test tube                  10、Lower plate

11、Control panel                  12、Oil pressure gauge

13、Adjusting button of oil pressure          14、Reflecting light
